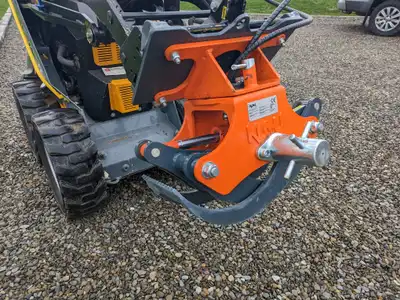

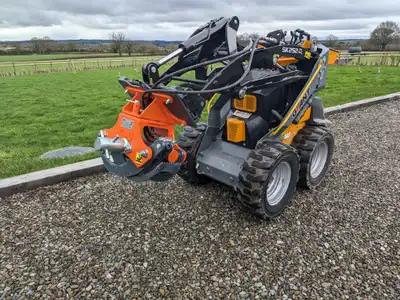

Lightweight Log grab - Compact - KLG1-MC
Designed to be lighter and more compact - specifically for the smaller range of skid steers and mini loaders on the market, including microBull, Giant, Sherpa, Workyquad etc.. But with no compromise on strength - Optional tow bar and capstan (not LOLER rated) The Klou log grab’s rigid swivel system allows it to move logs extremely precisely, and the high build strength and quality ensures reliable performance every day. The Grab features 8 locking positions and free spool - this allows the logs/brash to be dragged more like a trailer The compact version is missing the 'heal' element - allowing a saving in weight and allows for a more compact design, increasing manoeuvrability
Features
-
8 Locking positions
-
Free Spool
-
Optional Capstan Bollard
-
Tow bar included
-
Variety of hitches available
Specification
Overall Height
505mm
Overall width (open)
1105mm
Overall width (closed)
625
Length
300mm
Max opening
945mm
Min closed dia
60mm
Max log diametre
750
Overall weight
105kg
Max/min flow (l/min)
15/60
Max/min pressure (bar)
150/250
